| Specifications Product name |

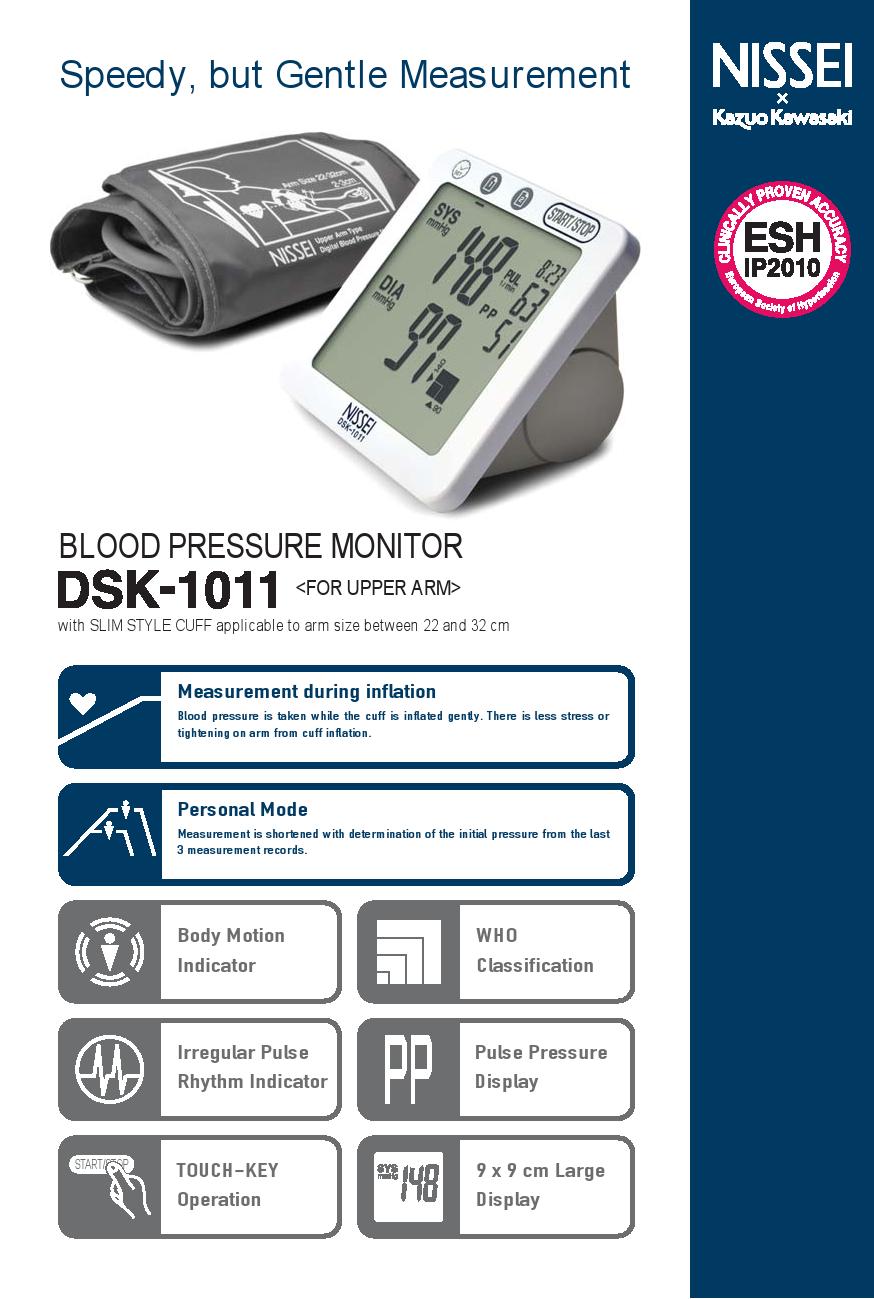

Blood Pressure Monitor DSK-1011 |
| Operation principle |
Oscillometric |
| Display |
15 Digit LCD |
| Pressure indicating range |
3 - 300 mmHg (cuff pressure) |
| Measuring range |
5 - 250 mmHg (systolic)
40 - 180 mmHg (diastolic)
40 - 160 bpm (pulse rate)
|
| Accuracy |
± 3 mmHg (pressure)
± 5 % (pulse rate) |
| Inflation |
Automatic |
| Deflation |
Automatic (electric control valve) |
| Exhaust |
Automatic exhaust valve |
| Power source |
Four AA alkaline (LR6) batteries |
| Electric rating |
DC6V/4W with batteries
Adaptor; AC100-240V 50-60Hz 0.12A,
Unit; DC6V 500mA with AC adaptor |
| Memory |
Two banks, each stores 60 readings |
| Operating condition |
+10 - +40 ℃, RH 15 - 85 % (noncondensing) |
| Transport/storage condition |
-20 - +60 ℃, RH 10 - 95 % (noncondensing) |
| Cuff |
Slim cuff |
| Applicable arm circumference |
Approx. 22 - 32 cm |
| Size |
Approx. 115(H) x 115(W) x 65.9(D) mm |
| Weight |
Approx. 290 g (main unit only, not including batteries) |
| Electrical safety |
Internally powered equipment/Class II equipment, type BF applied part |
| Protection against harmful ingress of water |
IPX0 |
| Specifications are subject to change without notice due to improvements in performance.The device complies with EN1060-1, EN1060-3 and IEC60601-1-2:2007. |
